Advanced welding technology
Advanced arc force and arc starting function and can resist interference
Stable arc,little flash and low noise
High welding quality,deep bath and strong strength
Auto protection of over voltage and over current
High efficiency,high frequency,low electricity consumption
Light handy and easily portable
User friendly and easy maintenance
Excellent insulation properties
Suitable for upholster industry,high altitude field operations
Labour Savings of Upto 55%
Power Savings of Upto 55%
Offers Best in Class Finishing and Efficiency

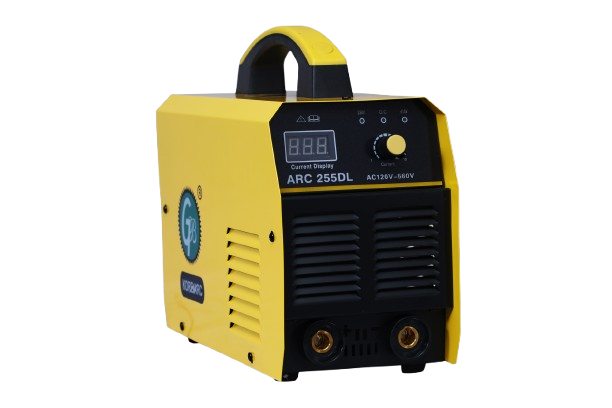

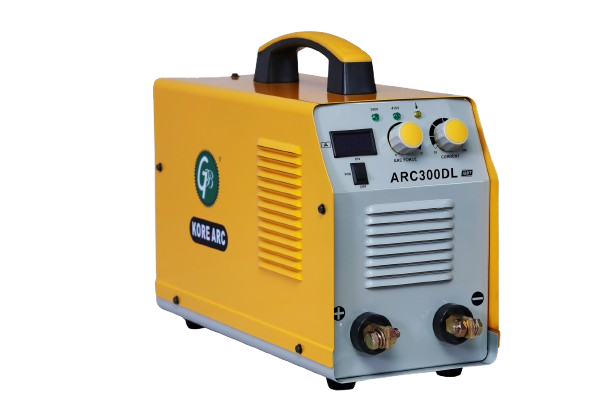

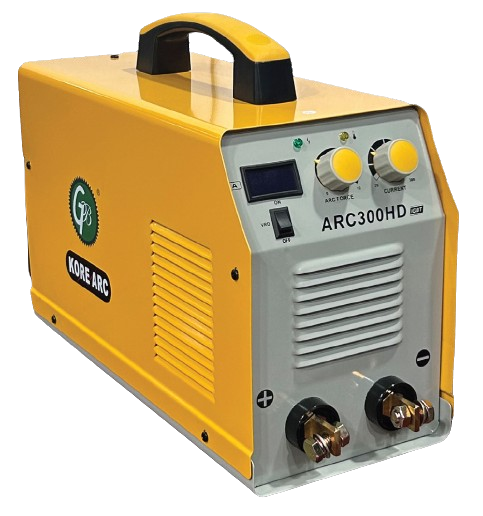

| PARAMETERS | ARC 255 | ARC 255DL | ARC 300DL | ARC 300 HD |
|---|---|---|---|---|
| RATED INPUT VOLTAGE(V) | AC220V±15% | 1P-AC230 2P-AC415V | 1P AC220V / 2P AC380V | 1P AC220V AC |
| FREQUENCY (Hz) | 60 | 50/60 | - | - |
| RATED INPUT POWER CAPACITY (KVA) | - | 4.4 | 7.9 | 7.7 |
| INPUT VOLTAGE RANGE (V) | - | - | 180-240V / 360-380V | 180-240V |
| RATED OUTPUT CURRENT (A) | - | - | 300A | 300A |
| RATED OUTPUT VOLTAGE (V) | - | - | 29V | 28V |
| CURRENT ADJUST RANGE (A) | 20-255 | 15-255 | 10-300 | 10-300 |
| NO-LOAD VOLTAGE (V) | 60 | 62 | 65 | 65 |
| DUTY CYCLE (%) | 60 | 60 | 60 | 60 |
| EFFICIENCY (%) | 87 | - | 85 | 85 |
| POWER FACTOR | 0.73 | - | 0.93 | 0.93 |
| INSULATION CLASS | - | - | F | F |
| DIMENSIONS (MM) | 420x145x266 | 340x165x310 | 395x153x301 | 395X153X301 |
| WEIGHT (KG) | 5 | 4.75 | 10 | 9 |
| PROTECTION CLASS | IP21 | IP21 | IP21 | IP21 |
| PARAMETERS | ARC 255 | ARC 255DL | ARC 300DL | ARC 300 HD |
|---|---|---|---|---|
| WELDING ROD/CARBON ROD DIAMETER | 1.6-3.2 | 1.6-3.2 | 1.6-4.0 | 1.0-4.0 |
| CURRENT RANGE (A) | 20-255 | 15-255 | 20-300 | 20-300 |
