High Efficiency,energy Saving,high Power Factor,low No Load Loss,fast Investment Recovery
Best in Class Practicality and Advancement Best in class practicality and advancement
Reliable performance
High duty cycle and continuous welding for longer times
Convenient operation
Less splash,no noise ,beautiful weld forming,superior adaptability
With arc thrust adjustment device it is suitable for welding with rods of dfferent specifications
Compact structure
Convinient and low maintainance
Energy saving and cost effective

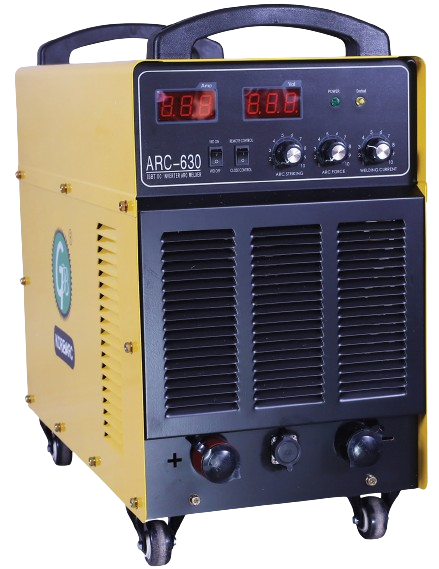

| PARAMETERS | ARC 630 2T | ARC 1000 |
|---|---|---|
| Power Voltage (V) | 415V+-15% | 415V+-15% |
| Frequency (Hz) | 50/60 | 50/60 |
| Rated Input Capacitor (KVA) | 34 | 53 |
| Rated Input Current (A) | - | 80 |
| No-load Voltage (V) | 75 | 95 |
| Rated Output Voltage (V) | 44 | - |
| Duty Cycle (%) | 45 | 60/40 |
| Efficiency (%) | 85 | 0.9 |
| Power Factor | 0.9 | - |
| Insulation Grade | F | F |
| Housing Protection Grade | IP21S | IP21S |
| Weight (KG) | 40 | 82 |
| Dimensions (MM) | 566x290x519 | 737x330x746 |
| PARAMETERS | ARC 630 2T | ARC 1000 |
|---|---|---|
| WELDING ROD/CARBON ROD DIAMETER | 3.15-4.0 | 5.0 (welding)/9.0(gouging) |
| CURRENT RANGE (A) | 3.15-4.0 | 3.15-4.0 |
