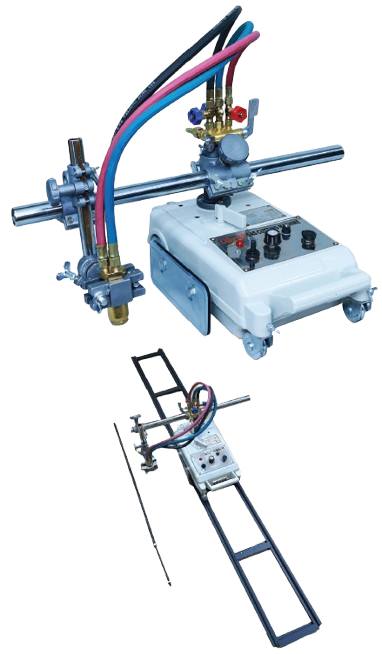

CG 30 Cutting Machine Adopts High Strength Alluminium Ingot Materials And Is Maufactured Through Accurate Die-casting.its Structure Is Designed Reasionably With Good Stability In Movement
The Speed Control System Of The Device Adopts A Mechanical 2 Cone Steepless Speed Change System To Control The Speed More Intuitevely
The Device Adopts A Double Layer Insulation Board Which Substantially Reduces The Impact Of High Temperature And Moist Environment Cutting
The Machine Adopts And Imported Alternator With Cooling Fan,in Which The Carbon Brush Need Not Be Changed
The Device Is Extremely Appropriate For Cutting Moderately Thick Materials,and Two Cutting Torches May Be Installed I The Same Time As Needed To Cut A Gas Groove
The User May Also Selectively Purchase Disk Guide Rail And Radius Rod To Cut Round Spare Parts
The Device Is Applicable To Ship Building, Petroleummetallurgy And Metal Structure,etc

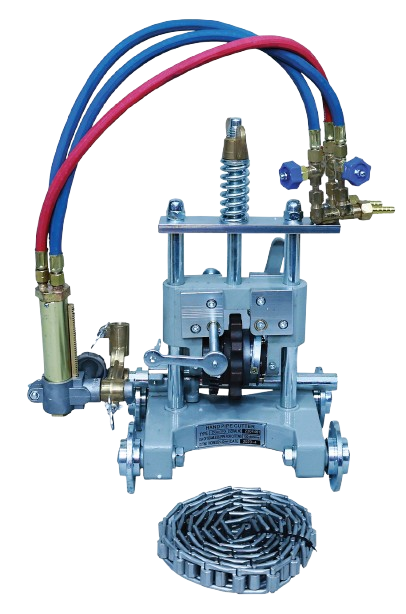

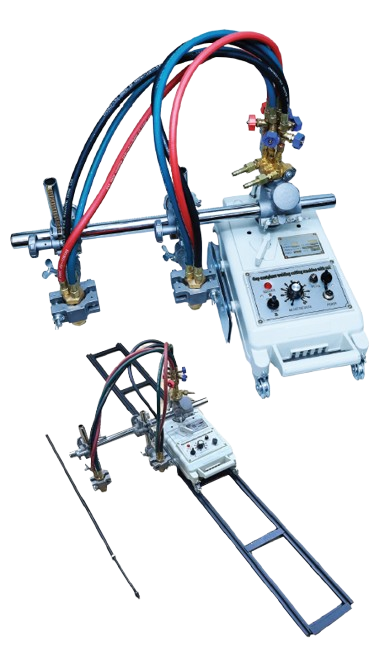

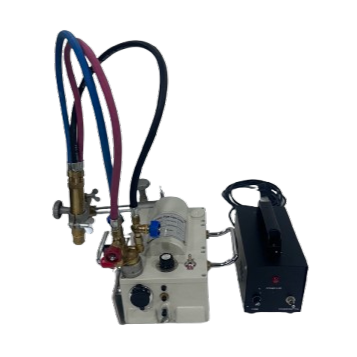

| PARAMETERS | CG 30 | CG 100 | CG2 11 | CG 11 |
|---|---|---|---|---|
| DIMENSIONS | 430x230x215 | 470x230x240 | 350x310x180 | 350x310x180 |
| SUPPLY VOLTAGE | AC220/50 | AC220/50 | AC220/50 | AC220/50 |
| DIAMETER OF CIRCLE CUTTING (MM) | 390 - 64O | 200 - 2000 | >108 | >108 |
| CUTTING THICKNESS(MM) | 6 - 50 | 6 - 100 | 6 - 50 | 6 - 50 |
| CUTTING SPEED(MM/MIN) | 80 - 8000 | 50 - 750 | 50 - 750 | 50 - 750 |
| MAGNETIC ABSORBABILITY (KG) | NIL | NIL | >50 | >50 |
| WEIGHT (KG) | 12 | 18 | 20 | 20 |
