Tubelor IGBT inverter technology
High welding quality,deep bath and strong strength
Auto protection of over voltage and over current
High efficiency,high frequency,low electricity consumption
Light handy and easily portable
User friendly and easy maintenance
Excellent insulation properties
Labour savings of upto 55%
Power savings of upto 55%
Offers best in class finishing and efficiency

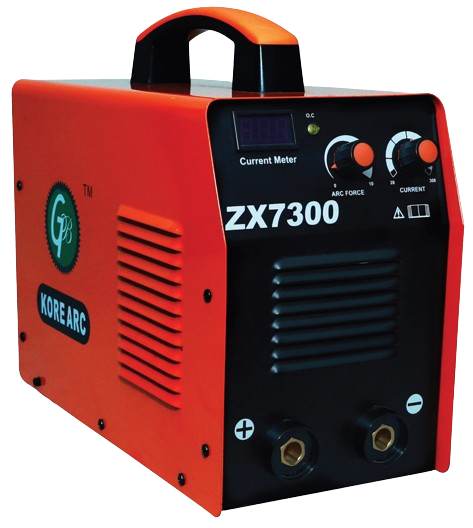

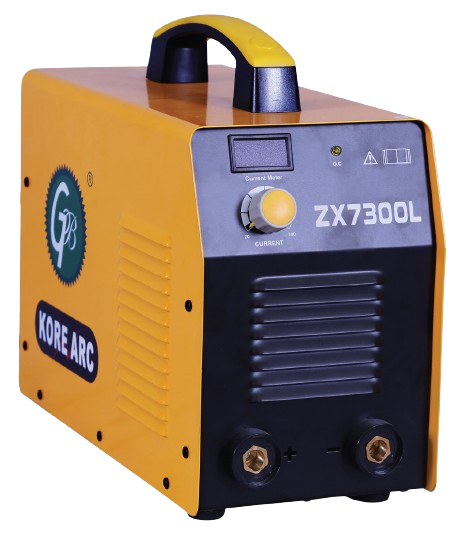

| PARAMETER | ZX7 300 | ZX7 300L | ZX7 400 |
|---|---|---|---|
| Input Power Voltage (V) | 1P AC- 230 ± 15 % | 3P-AC415V/240V±15% | 3P AC415V |
| Input Power Capacity (Kva) | 8.9 | - | 10.7 |
| Rated Input Current (A) | 36 | 17/30 | 38 |
| No -load Voltage (V) | 56 | - | 60 |
| Current Adjustment Range (A) | 20-300 | 30-300 | 20-400 |
| Efficiency (%) | 85 | 85 | 85 |
| Duty Cycle (%) | 60 | 60 | 60 |
| Power Factor | 0.93 | 0.7 | 0.93 |
| Protection Class | IP21 | IP21 | IP21 |
| Weight (Kg) | 7 | - | 8.5 |
| Overall Dimension (Mm) | 450× 160× 303 | 380x190x330 | 400x210x350 |
| PARAMETERS | ZX7 300 | ZX7 300L | ZX7 400 |
|---|---|---|---|
| WELDING ROD/CARBON ROD DIAMETER | 1.6 – 4.0 | 2.5 - 4.0 | 1.6- 4.0 |
| CURRENT RANGE (A) | 20-300 | 30-300 | 20-400 |
