Advanced welding technology
Advanced arc force and arc starting function and can resist interference.
Stable arc,little flash and low noise
High welding quality,deep bath and strong strength
Auto protection of over voltage and over current
High efficiency,high frequency,low electricity consumption
Light handy and easily portable
User friendly and easy maintenance
Excellent insulation properties
Suitable for upholster industry,high altitude field operations
Labour savings of upto 55%
Power savings of upto 55%
Offers best in class finishing and efficiency

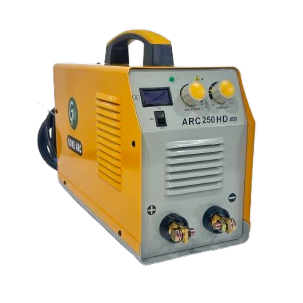

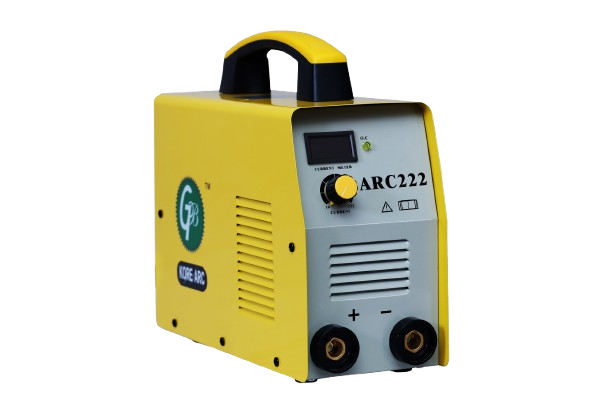

| PARAMETERS | ARC 222 | ARC 250 HD | ARC 255 | ARC 255DL |
|---|---|---|---|---|
| INPUT POWER VOLTAGE (V) | AC220V±15% | 1P AC220V | AC220V±15% | 1P-AC230 2P-AC415V |
| INPUT POWER CAPACITY (Kva) | 4.4 | - | 4.4 | 3.6 |
| FREQUENCY (HZ) | 60 | 50/60 | 60 | 50/60 |
| RATED INPUT CURRENT (A) | 19.2 | - | 19.2 | 20/12 |
| NO-LOAD VOLTAGE (V) | 60V | 65V | 60V | 62V |
| CURRENT ADJUST RANGE (A) | 20-200 | 10-250 | 20-255 | - |
| EFFICIENCY (%) | 87% | 85% | 87% | - |
| DUTY CYCLE (%) | 60 | 60 | 60 | 60 |
| POWER FACTOR | 0.73 | 0.93 | 0.73 | - |
| PROTECTION CLASS | IP21 | IP21 | IP21 | IP21 |
| ELECTRODE DIAMETER | 1.6-3.5 | - | 1.6-3.5 | - |
| WEIGHT (KG) | 5 | 9 | 5 | 4.75 |
| OVERALL DIMENSIONS (MM) | 420x145x266 | 395X153X301 | 420x145x266 | 340x165x310 |
| PARAMETERS | ARC 222 | ARC 250 HD | ARC 255 | ARC 255DL |
|---|---|---|---|---|
| ELECTRODE DIAMETER | 1.6-3.2 | 1.6-4.0 | 1.6-3.2 | 1.6-3.2 |
| CURRENT RANGE (A) | 20-222 | 10-250 | 20-255 | 15-255 |
