Lgk Or Cut Series Is Used For Plasma Arc Cutting Of Medium Air
It Is Fit For Cutting Various Metal Materials Such As Stainless Steelalloy Steel,cast Iron,carbon Steel,copper,alluminium, Manganese & Titanium
It Comes With In Built High Frequency,soft-switching Igbt
Excellent Power Source Control Systemwith High Response Speed.
Wide Grid Vltage Adaptability And High Reliability, With Stable Plasma Arc Combustion.
100% Arc Striking Success Rate
Excellent Technological Performance
Has All Signal Output Required By Cnc Control And Is Suitable For Automatic Cutting
With High Duty Cycle The Machine Can Keep Working For A Long Time Under Maximum Current

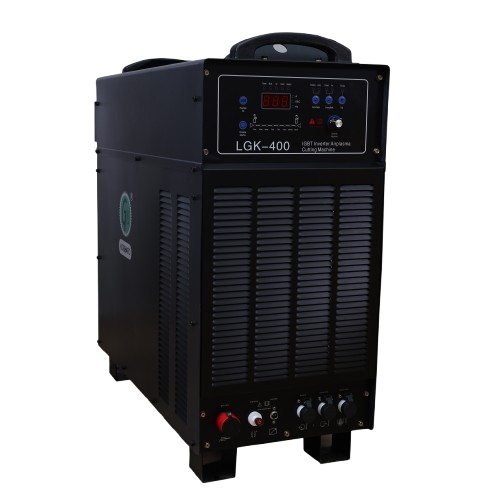

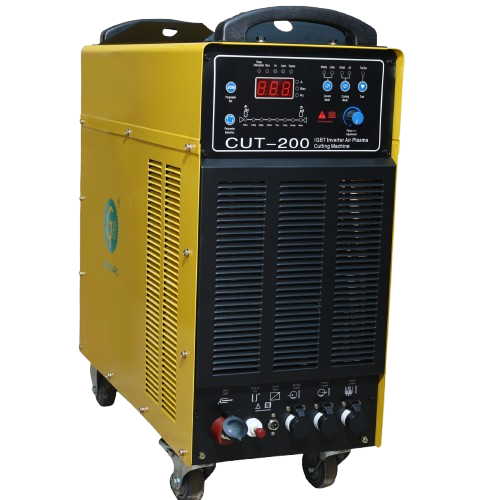

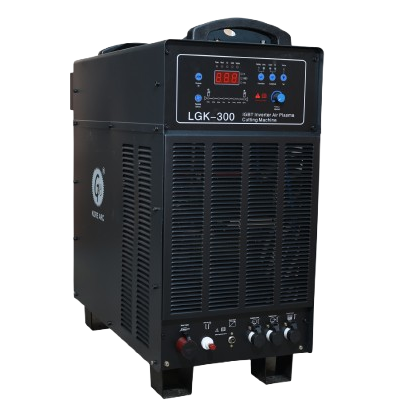

| PARAMETERS | CUT 160 | CUT 200 | CUT 300 | CUT 400 |
|---|---|---|---|---|
| VOLTAGE (V) | 3P 380V±15% | 3P 380V±15% | 3P 415V±15% | 3P 415V±15% |
| FREQUENCY (HZ) | 50/60 | 50/60 | 50/60 | 50/60 |
| RATED INPUT CAPACITY (KVA) | 32 | 47 | 77 | 102 |
| RATED INPUT CURRENT (A) | 43 | 63 | 94 | 137 |
| POWER FACTOR | 0.89 | 0.89 | - | - |
| RATED OUTPUT CURRENT (A) | 160 | 200 | 300 | 400 |
| RATED OUTPUT VOLTAGE (V) | 144 | 150 | 160 | 170 |
| RATED DUTY CYCLE (%) | 100 | 100 | - | - |
| OUTPUT FLOATING VOLTAGE (V) | 320 | 340 | 365 | 365 |
| OUTPUT CURRENT RANGE (A) | 30-160 | 30-200 | 40-300 | 40-400 |
| PLASMA GAS USAGE | COMPRESSED AIR | COMPRESSED AIR | COMPRESSED AIR | COMPRESSED AIR |
| WORKING GASS PRESSURE SCOPE (MPA) | 0.45-0.55 | 0.45-0.55 | - | - |
| EFFICIENCY (%) | 90 | 90 | 92 | 92 |
| INSULATION CLASS | F | F | F | F |
| SHELL PROTECTION DEGREE | IP21S | IP21S | IP21S | IP21S |
| TORCH COOLING | WATER/AIR COOLING | WATER/AIR COOLING | - | - |
| ARC STRIKING MODE | HIGH FREQUENCY ARC STRIKING | HIGH FREQUENCY ARC STRIKING | NO CONTACT | NO CONTACT |
| DIMENSIONS (MM) | 720x350x625 | 825x350x735 | 850x410x930 | 980x430x930 |
| WEIGHT (KG) | 58 | 75 | 135 | 153 |
| PARAMETERS | CUT 160 | CUT 200 | CUT 300 | CUT 400 |
|---|---|---|---|---|
| PLATE THICKNESS (MM) | 3.0-50.0 | 3.0-65.0 | 3.0-75.0 | 3.0-80.0 |
| ARCHING WAY | UNTOUCHED | UNTOUCHED | UNTOUCHED | UNTOUCHED |
| CURRENT RANGE (A) | 35-160 | 40-200 | 30-300 | 40-400 |
