THE PRIORITY SELECTION FOR HEAVY ENGINEERING FABRICATION INDUSTRY WITH HEAVY DUTY
Processes
MMA
Carbon Arc Gouge
Remote Control
Package Includes
Inverter Power Source

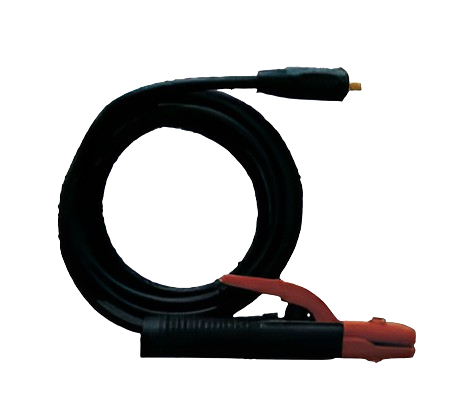

Electrode Holder, 3m

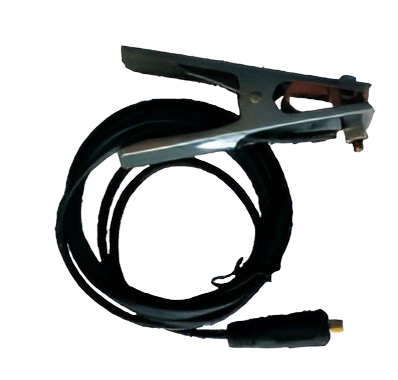

Earth Clamp, 3m
Optional Accessories
Quick Plug
Wrench
Helmet
Remote Control Box
Features
Heavy Duty, Non-stop Working Under 40 Degree Condition
VRD Adjustable
ARC Force Adjustable
Hot Start Adjustable
Recommend For 5.0mm Electrode
Suitable For Acid Electrode, Basic Electrode And Cellulosic Electrode
Tri-Proof Air Duct Design
| MODEL | INPUT VOLTAGE PHASE FREQUENCY | OUTPUT CURRENT VOLTAGE | AMPS INPUTS AT RATED OUTPUT | OUTPUT RANGE | DIMENSION MM | WEIGHT KG |
|---|---|---|---|---|---|---|
| ARC 400IJ | 380V/3P/50-60Hz | 400A/36V/60% / 310A/32.4V/100% | 27.6@400А | 30-400A/72V/17V(VRD) | 550X286X545 | 25 |
| ARC 630IJ | 380V/3P/50-60Hz | 630A/44V/60% / 488A/39.5V/100% | 53.1A@630A | 50-630A/90V/17V(VRD) | 650X310X640 | 54 |
