EQUIP SELF - ADAPTIVE ARC FORCE AND HOT START.
Processes
MMA
Package Includes
Inverter Welding Machine

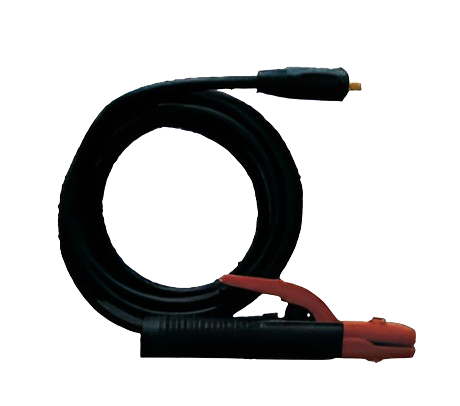

Electrode Holder, 1.5m

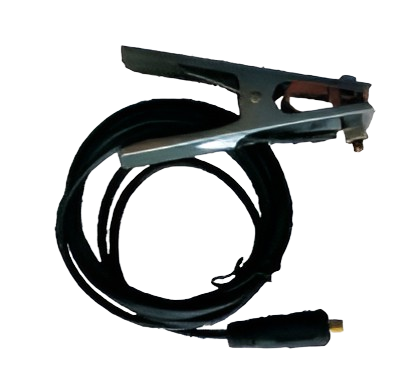

Earth Clamp, 1m
Optional Accessories
Kit Case
Brush
Helmet
Belt
Features
RICHIP Chip Bulit-In.
70KHZ Inverter Frequency Delivery Smooth Welding Experience.
Bulit-In Power Management System.
The VRD And Smart Fan Can Be Customized.
Self-Adaptive Arc Force And Hot Start Built-in, Anti- Sticking.
Non-Stop Welding For 2.5 Or 3.2mm, Even 4.0mm Electrode.
Suitable For Acid And Basic Electrode, Even Cellulose Electrodes. (for MMA 235ge & 270ge)
| MODEL | INPUT VOLTAGE PHASE FREQUENCY | OUTPUT CURRENT VOLTAGE | AMPS INPUTS AT RATED OUTPUT | OUTPUT RANGE | DIMENSION MM | WEIGHT KG |
|---|---|---|---|---|---|---|
| ARC 235GE | 220V/1P/50-60Hz | 40 C: 160A/26.4V/20% / 25 C: 180A/27.2V/40% / 120A/24.8V/100% | 32.9A@180A | 30-180A/58V | 294X126X205 | 3.3 |
| ARC 270GE | 220V/1P/50-60Hz | 220V/1P/50-60Hz / 25 C: 200A/28V/40% / 150A/26V/100% | 35.6A@200A | 30-200A/58V | 294X126X205 | 3.4 |
