Adopts' advanced Inverter Technology with High Working Frequency
Performs Dual Functions - MMA/ARC Welding , Tig Welding
HAS'3 Ply Board' Structure Which Is Highly Durable, reliable And Easy To Maintain.
Provides Stable Welding Current, Can Do Fast Tig Spot Welding
Facilitates Adjustment Of MMA Welding Thrust
Very Efficient And Energy Saving- Upto 60% Savings Over Traditional Welders
Comes With In Built Electric Circuit For Prevention From The Effects Of Over Voltage, current And Over Heating As Well
Top Class Insulation Properties
Labour Savings Of Upto 55%
Suitable To Weld Using All Types Of Electrodes
Fit For Welding All Black Metals- Low Carbon Stee,mild Carbon Steel,alloy Steel Structure,copper And Titanium Metals.
Offers Best In Class Finishing And Efficiency

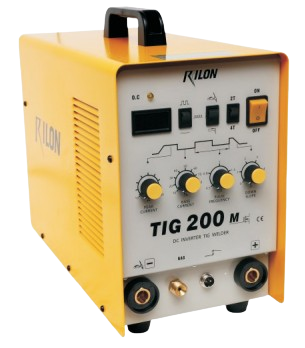

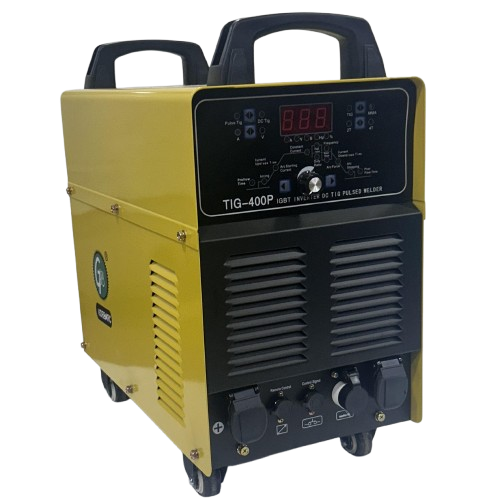

| PARAMETERS | TIG 200 A | TIG 300 A (1P) | TIG 300 A (3P) | TIG 400A |
|---|---|---|---|---|
| POWER VOLTAGE(V) | 1P AC220VC±15% | 1P AC220V±15% | 3P AC380V-415V ±15% | 3P AC380V-415V ±15% |
| FREQUENCY (HZ) | 50/60 | 50/60 | 50/60 | 50/60 |
| RATED INPUT CURRENT (A) | 28 | 38.9 | 12.7 | 20 |
| NO-LOAD VOLTAGE (V) | 42 | 56 | 54 | 60 |
| OUTPUT CURRENT (A) | 10-200 | 20-300 | 20-300 | 20-400 |
| RATED WORKING VOLTAGE (V) | 18 | 20 | 22 | 26 |
| FORCE ADJUSTMENT (A) | - | - | 0-80 | 0-100 |
| DUTY CYCLE (%) | 60 | 60 | 60 | 60 |
| NO-LOAD LOSS (W) | 40 | 40 | 60 | 100 |
| ARCING WAY | HF | HF | HF | HF |
| EFFICIENCY (%) | 80 | 80 | 85 | 85 |
| POWER FACTOR | 0.73 | 0.73 | 0.93 | 0.93 |
| INSULATION GRADE | F | F | F | F |
| HOUSING PROTECTION GRADE | IP21S | IP21S | IP21S | IP21S |
| WEIGHT(KG) | 10 | 19 | 20 | 30 |
| DIMENSIONS(MM) | 375x155x232 | 480x204x303 | 480x204x303 | 565x306x432 |
| PARAMETERS | TIG 200 A | TIG 300 A (1P) | TIG 300 A(3P) | TIG 400A |
|---|---|---|---|---|
| PLATE THICKNESS(MM) | 3.0-5.0(TIG) | 3.0-6.0(TIG) | 5.0-10.0(TIG) | 2.0-20.0(TIG) |
| WELDING ROD/CARBON ROD DIAMETER | 1.6-3.2 | 1.6-4.0 | 1.6-4.0 | 1.6- 5.0 |
| CURRENT RANGE(A) | 20-200 | 20-300 | 20-300 | 20--400 |
